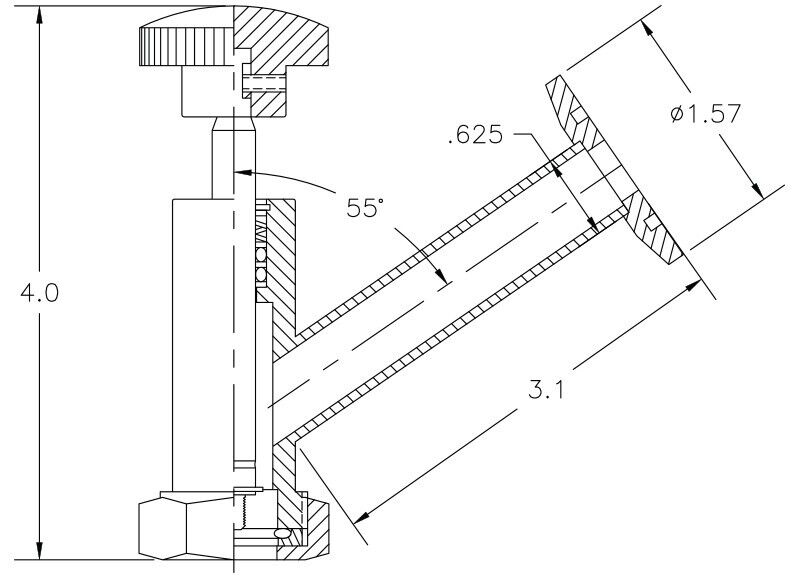

CRYOCOMP 1/2" Flange End Vacuum Valve Operator Model V1045–3–25

CRYOCOMP 1/2" Flange End Vacuum Valve Operator Model V1045–3–25

$99.95 USD
$99.95 USD
Sale Sold out
Shipping calculated at checkout.

Up for sale is this CRYOCOMP 1/2" Flange End Vacuum Valve Operator Model V1045–3–25


It comes new in factory sealed package.

FEATURES

  • Simple, Inexpensive And Reliable Tight Seal At The Body Junction
  • Spring Loaded, Redundant Seal on Shaft
  • Connection Between V1000 Seal-off Valve and Pump
  • Removes And Replaces The Seal Plug During The Pump Down Operation
  • For Pipe End, See V1045-2

APPLICATIONS

  • Vacuum-insulated piping systems
  • Manifolds
  • Flex lines
  • Dewars
  • Tanks
  • Chambers
  • Furnaces
  • Any fabrication that requires a vacuum jacket

TECHNICAL DATA

  • SERVICE: High Vacuum.
  • PRESSURE: 1 X 10-8 TORR Vacuum up to 15 PSIG Positive.
  • TEMPERATURE: +150° F TO -60° F.
  • LEAK RATE: 1 X 10-8 STD CC GHe/ SEC. (Seal Permeability).
  • CONNECTION: Weld junction is standard. Thread and flange junctions available on request.
