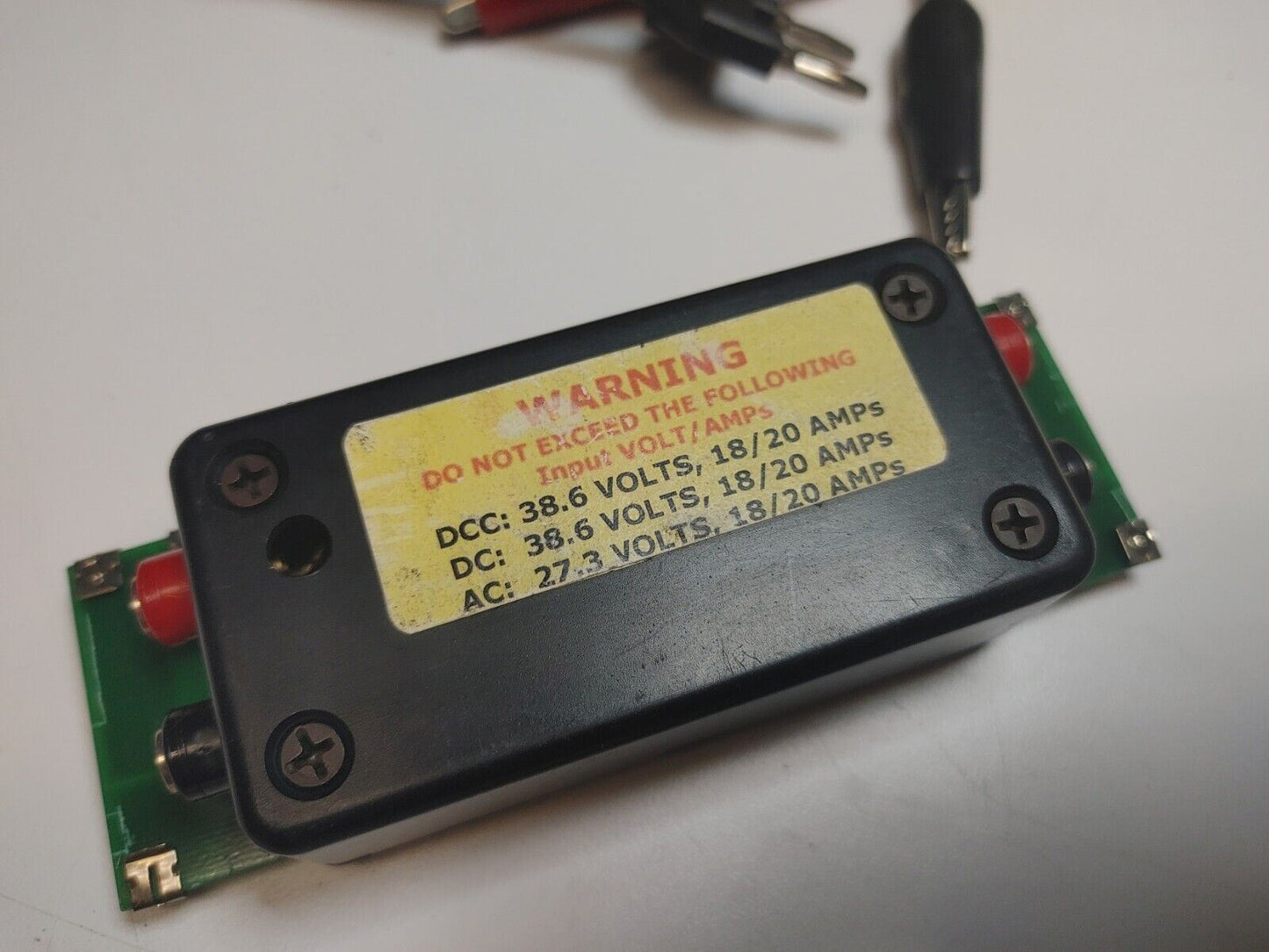

DCC SPECIALTIES 246 RRAMPMETER V4 HIGH VOLTAGE w/Clip leads & Battery backup

DCC SPECIALTIES 246-RRAMPMETER V4 - Circuit Module -- Version IV - Enclosed w/Clip Leads & Battery Backup for High Voltage (Scale=ALL)  246-RRAMPMETER V4

Please be mindful of the fact that this is Version 4 and that V1 thru V4 have different specifications!

RRampMeter Version IV

High power circuit module with battery backup. Designed and built specifically for power hungry heavy metal uses! Accurately measures DCC, AC and DC Volts and Amps! DCC – 38.6 V, 18-20 A; DC – 38.6 V, 18-20 A; AC – 27.6 V, 18-20 A; PCB length 5.63″; Enclosure length 4″, width 2″, height 1.25″

The amazing RRampMeter designed for Model Railroaders by DCC Specialties does what no other meter can do!  Easy walk-around measurements of layout voltage drops, accurate booster output setup to optimum voltages for decoders and sound units.

• The only inexpensive device that accurately measures DCC Volts/Amps.
• Also measures AC and DC Volts/Amps.
• Costs less than DVMs that cannot measure DCC. Ver I, II, & III rated at 10 Amps and Ver IV rated at 20 Amps.
• Measures true RMS Volts/Amps, +/- 2%.
• Suitable for all scales.
• No batteries required.
• Designed for Left/Right-hand use.
• PCB length 5.63″; Enclosure length 4″, width 2″, height 1.25″
• 4 Styles Available:
  1. 1. Version I RRampMeter Circuit Module without enclosure (Fig. 2) (This listing is not for V1)
     2. Version II RRampMeter with Enclosure and Clip Leads (Fig. 3) (This listing is not for V2)
     3. Version III RRampmeter Same as II. with Battery backup for measurements below 7 Volts (This listing is not for V3)
     4. ---> Version IV RRampmeterHP <---
        Same as III but for large Scale high voltage and current applications:
        DCC: 38.6 v and 18-20 Amps
        AC: 27.6 v and 18-20 Amps
        DC: 38.6 v and 18-20 Amps
