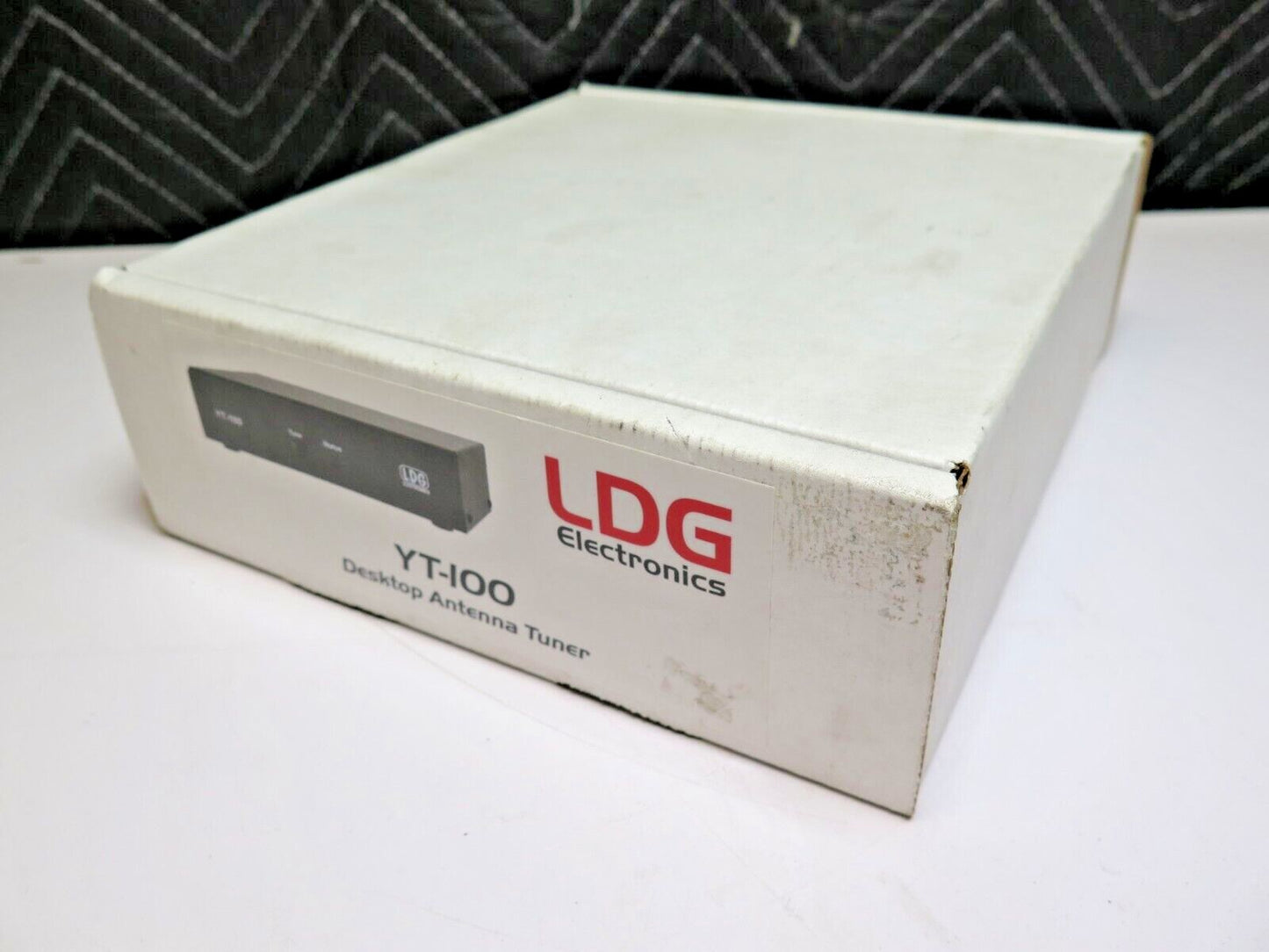

LDG YT-100 ANTENNA TUNER - Unused

LDG Electronics YT-100 Automatic Antenna Tuners

LDG Electronics YT-100 Automatic Antenna Tuners are dedicated for use only with your Yaesu FT-857, FT-897, or FT-100 (including all D models). An included CAT cable interfaces with your radio. This fully integrates the tuners, allowing them to be powered and controlled by the interface cable… no extra power cables are needed.

Just press the tune button on the tuner and everything else happens automatically! The mode is set to carrier and the RF power is reduced, a tune cycle runs, and the radio is returned to the original settings. It's all automated; and just THAT easy.

Additional features include:

* RF power is 1 to 100 watts SSB, CW, and digital modes
* Latching relays for ultra-low power consumption
* Built-in CAT interface only for FT-100(D), 857(D), and 897(D) radios
* NOTE: DOES NOT WORK with FT-891, FT-450 or FT-950
* Powered from Yaesu radio over CAT port
* CAT through port for computer control of radio, 4,800 baud
* 2,000 memories sorted by frequency
* 1.8 to 54 MHz coverage (continuous coverage for MARS)
* Tunes 4 to 800 ohms (16 to 150 on 6m)
* SO-239 in and out connections for dipoles, verticals, beams, G5RV, OCF, Cobra, etc.
* Includes 12 in. CAT interface cable
