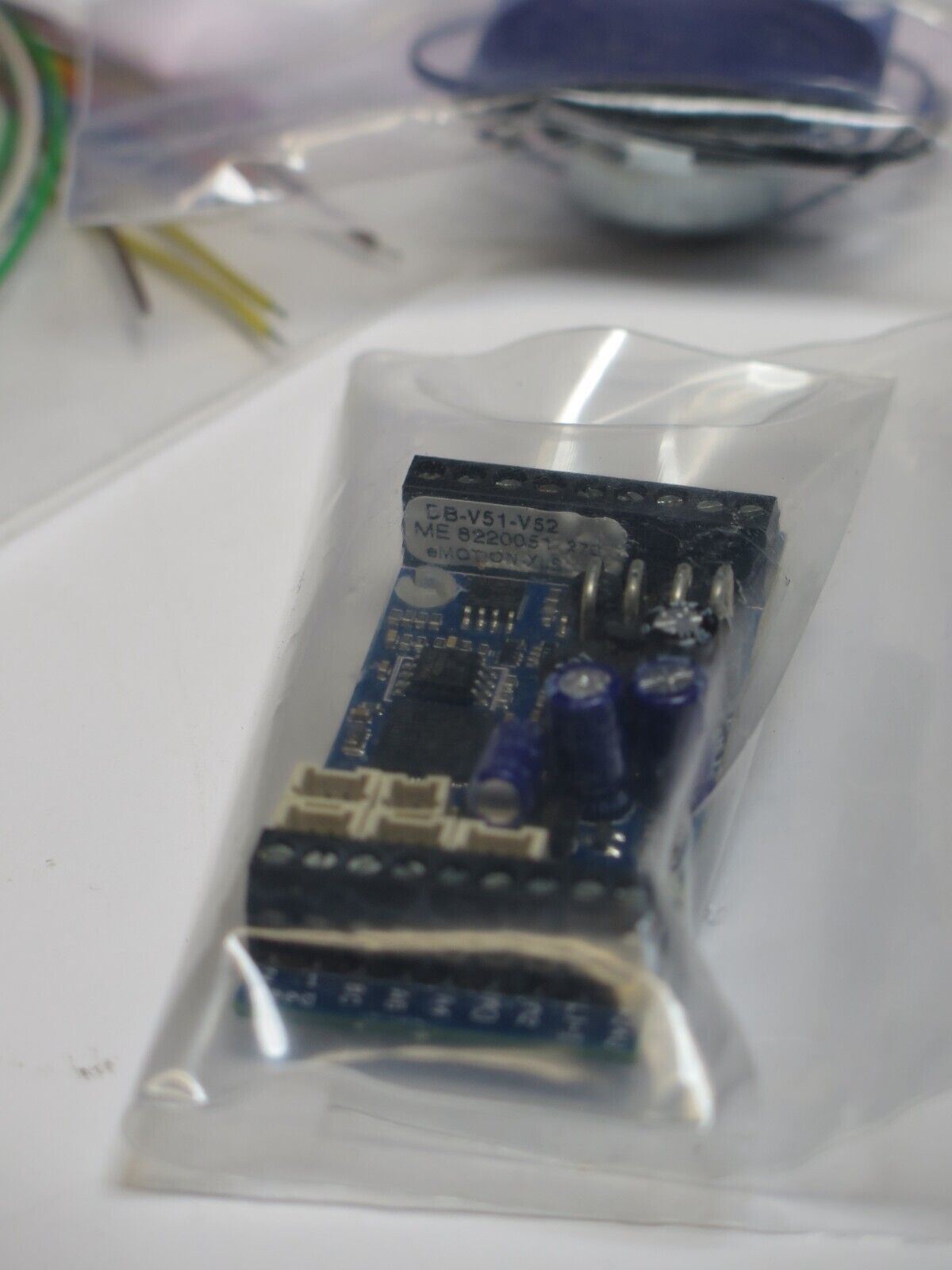

Massoth 8220051 eMOTION XLS Sound Decoder - V51 Rügen / V52 DB diesel locomotive

The Massoth emotion XLS decoder is a powerful 4.0Amps driving, function, and sound decoder designed for installation in G scale locomotives equipped with 1 or 2 driving motors.

Part Number 8220051 - V51 Rügen / V52 DB diesel locomotive

The XLS features a 3.5Amps output stage for up to two motors, 3 light outputs, 8 function outputs, 4 contacts inputs, a Massoth-SUSI interface, and an integrated 3-watt high performance sound amplifier with 6 independent sound channels.

The XSL offers selectable 14/28/128 speed steps, analog and digital operation, digital and analog Back EMF, and overload-overheat protection for motor and function outputs.

The decoder holds a little over 3 minutes of high quality digital sound. It stores a locomotive's prototypical operating sounds as well as an array of additional sounds that may be configured to suit individual tastes. The integrated digital power amplifier reproduces all sounds and side noises of a locomotive authentically.

Operating the XLS decoder with an additional power buffer increases its dependability: brief track power disruptions are bridged in analog and digital operation and contaminated tracks and switch frogs are negotiated without any speed changes or interruptions.

The XLS decoder comes with an LGB® DCC interface cable to simplify installation in locomotives equipped with an LGB® DCC interface. An optional interface cable to simplify Installation in locomotives equipped with LGB® six-pin decoder interface is available (product # 8312061).

The eMOTION XLS sound decoder supports the full NMRA protocol, and is compatible with all generations of the LGB® MTS system.

Summary of Features:

• Total amperage: 4.0Amps
• Motor amperage: 3.5AMps
• Light and function outputs amperage: 1.3Amps
• Compatible with NMRA DCC and all generations of LGB® MTS systems
• Serial and parallel control of all lights and function outputs, including LBG® P-sound updates
• Digital and analog operation with automatic recognition
• 10239 Locomotive addresses
• 14/28/128 speed steps
• 256 internal speed steps
• Programmable speed curve
• Adjustable starting, mid, and maximum speed
• Adjustable acceleration and deceleration time
• Adjustable motor frequency (90Hz-16kHz)
• Latest load control technology, Back-EMF, analog and digital
• Switching speed activated with mappable function key
• 3 light outputs, 3 x 300mAmps (front, interior, and rear)
• 8 function outputs, 4 x 600mAmps (F1-F4), 4 X 10mAmps (F5-F8)
• 2 Reed contact inputs
• RC servo control channel
• Connection for optional power buffer
• Connection for programmable pulse generation function
• Massoth-SUSI interface
• Light and function outputs dimmable; can be activated in analog operation
• Programmable blinking lights, short-duration function, and pulse generator function
• Easy to use function mapping
• Free command allocation of all function outputs (F1-F16)
• Rest function for all CV values
• Overload protection for function outputs
• Overheat protection for function outputs
• Sounds and firmware updatable

Sound Features:

• 3 watts hi-performance amplifier for 8 Ohms speaker
• 6 channel play-back (6 sounds at the same time)
• Memory capacity for max. 200 sec. of recorded sound
• 4 driving sounds, and 12 side noises, selectable
• play-back frequency: 16KHz
• Volume control by potentiometer or CV programming (also individual sounds)
• Sound functions usable in analogue mode

Features for Mallets, Rack Rail locomotives, and Dual Powered Locomotives: (1) The XLS Decoder has 2 separate inputs for synchronizing chuffs to wheel rotation in locomotives with two steam pistons like Mallets or steam rack rail Locomotives. (2) Starting with version 2.5, you can use CV 170 to define a function key which, when pressed, will activate/deactivate the rack noise on a steam rack rail engine, or switch the sound from electric to diesel and vice versa on a dual powered locomotive.

Technical specifications

• Power supply: 0-24 Volts DC/DCC
• Maximum total load: 4.0Amps
• Motor output: Max. 3.5Amps, 70Hz-16kHz, load controlled, digital and analog
• Light outputs: Max.(3 X 300mAmps) 22V dimmable
• Function outputs:(4 X 600mAmps), (4 X 10mA)
• Total light and function outputs combined: Max. 1.3Amps
• Loudspeaker 8 Ohms (Min. 1.5 watts)
• Temperature range: -4°F to 113°F
• Dimensions: 55x32x15mm

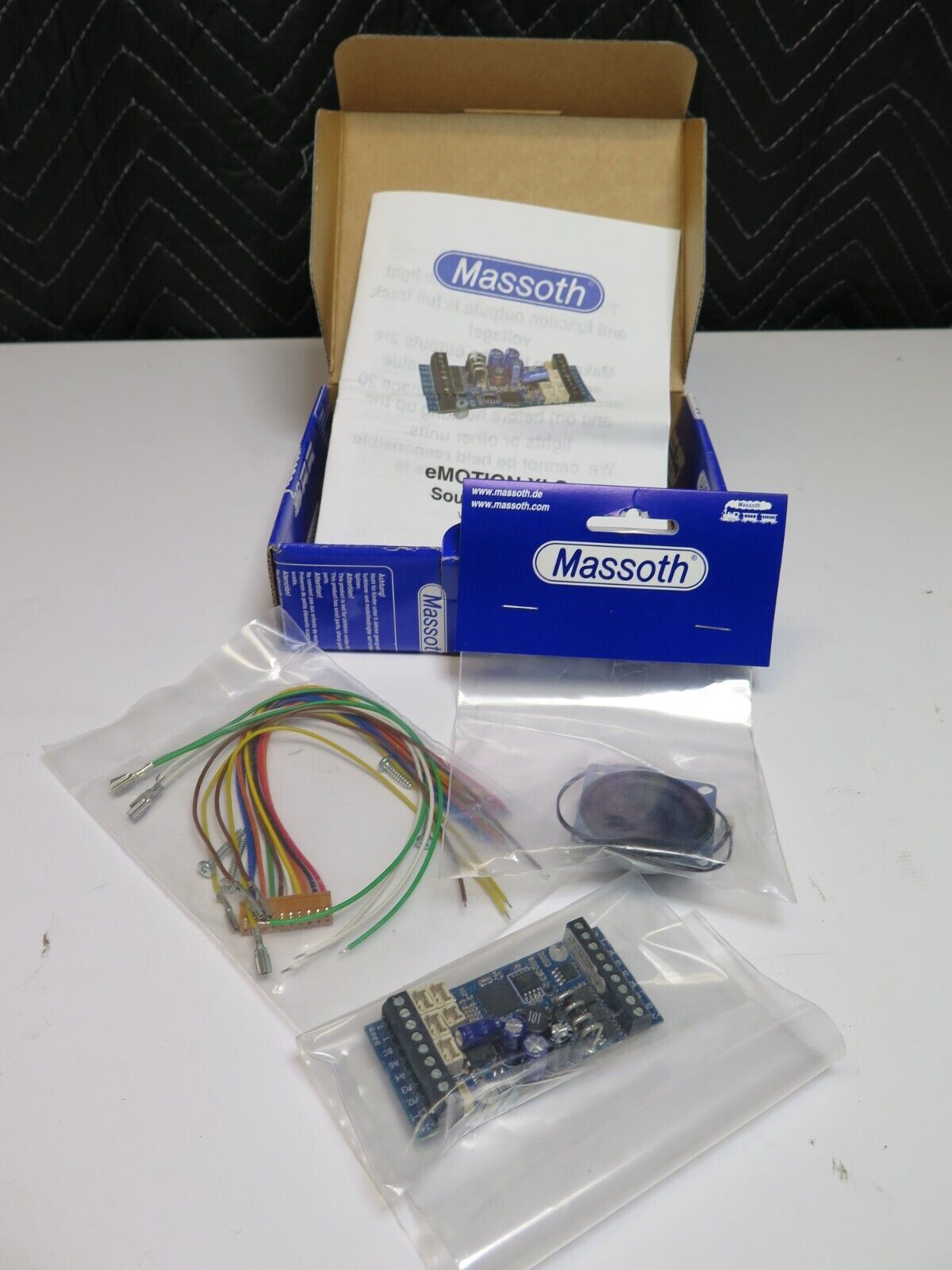

Scope of Delivery

• eMOTION XLS Decoder
• One loudspeaker (see listing below)

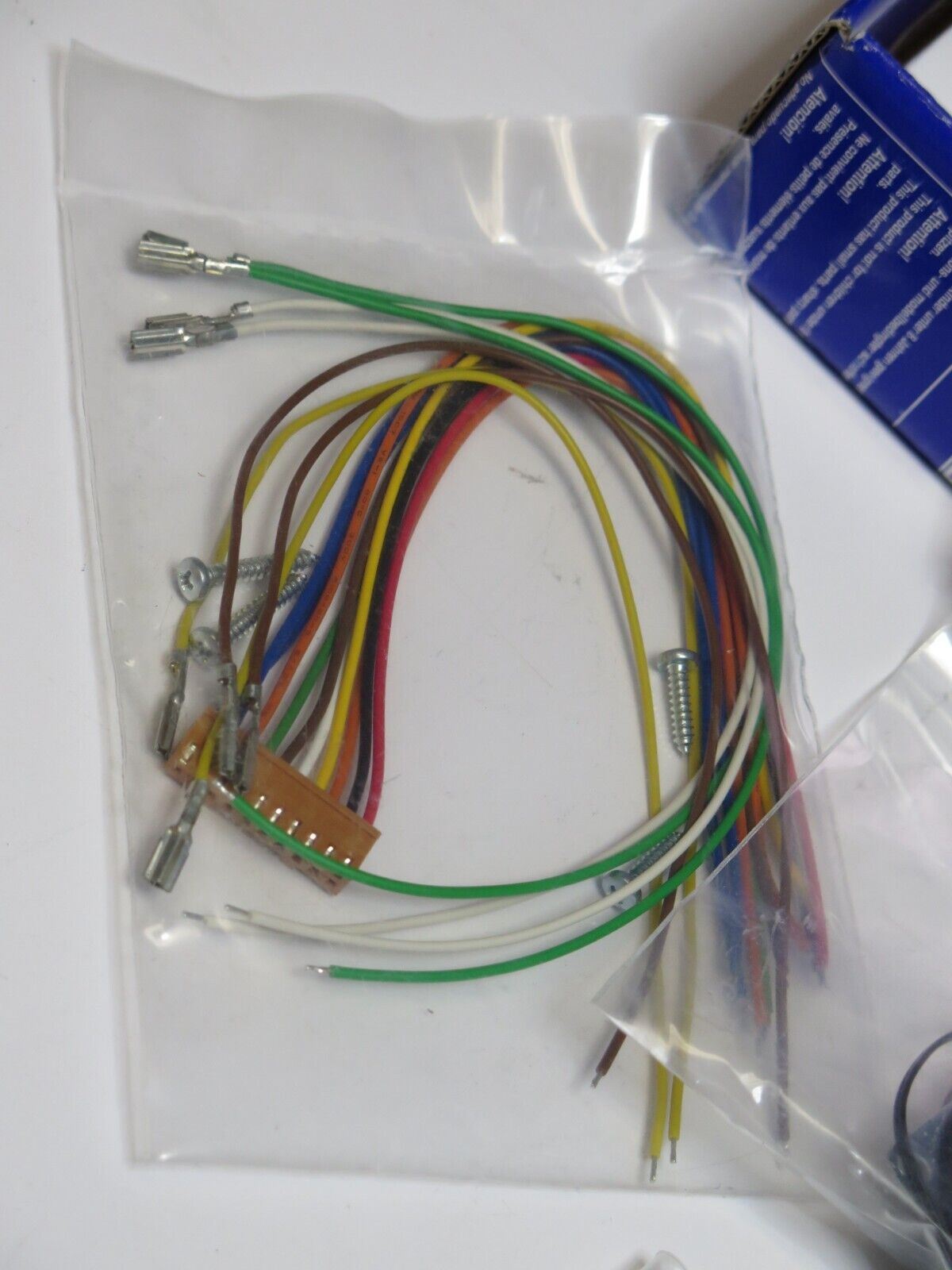

• 2 sets of LGB® motor-block connecting cables (4 pieces each)
• 2 screws 2.9x13 mm
• 2 screws 2.9X19mm
• User's Manual
